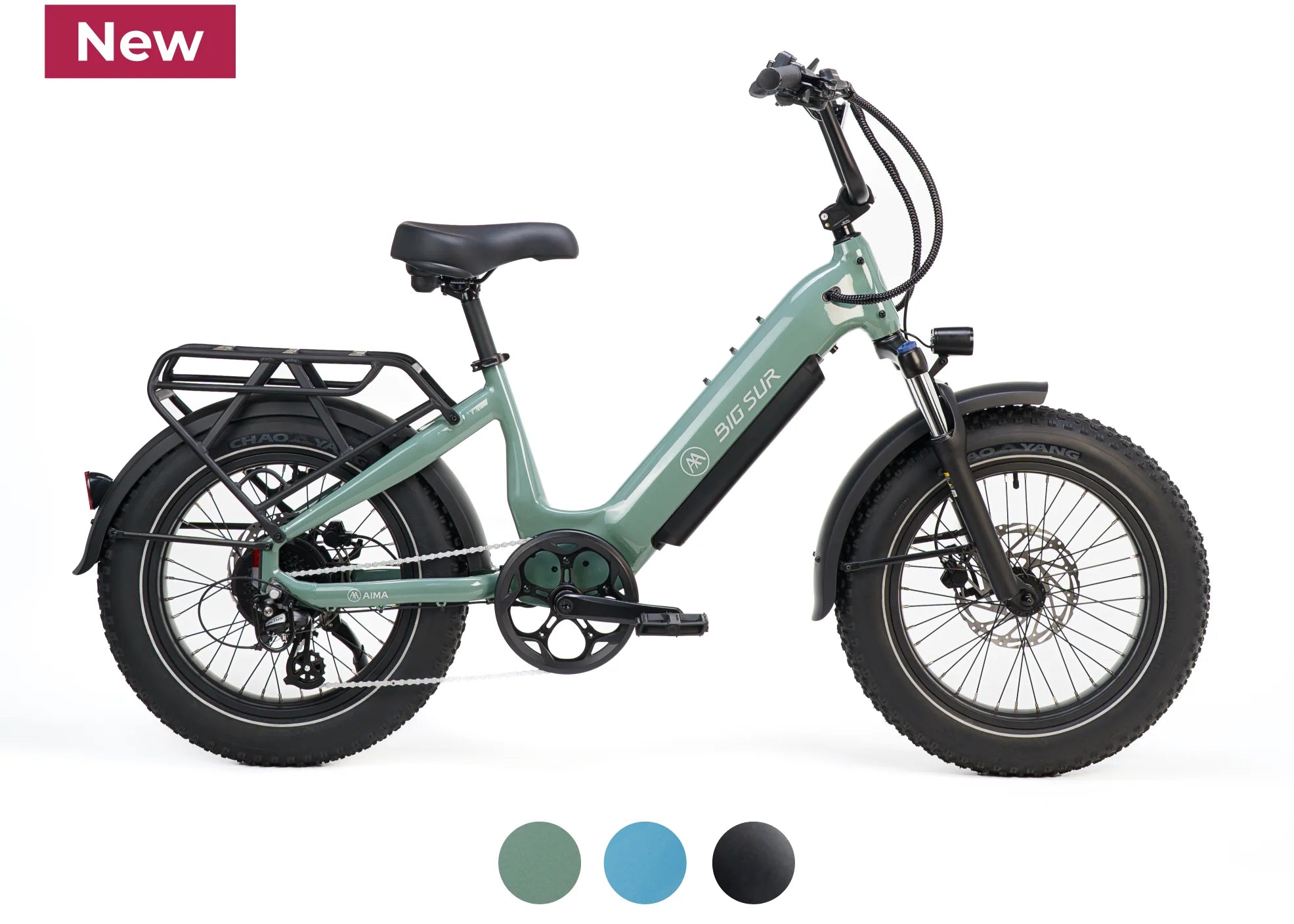

AIMA Big Sur Sport Fat Tire E-Bicycle 20"

BIG SUR Sport packs the same fun, comfort and excitement than its bigger brother, in a more compact and lightweight configuration. Build around the same powerful Bafang rear hub motor and high capacity 720Wh battery, it has the additional benefit of being easier to move around and store in a limited environment. Fully certified by UL2849 safety standard, this pocket bike is the perfect companion for taking on roadtrips or city escapes.

• Class 2 E-Bike, 500W (Software Restricted), 32km/h max assist.,
• UL 2849
• ISO 4210

• Unique Compact Step-Thru Aluminum frame, integral Smooth Welding
• Reliable Pedal Assist System, provided by Bafang
• Powerful Rear Hub Motor, 48V, 500W, Max Torque 80Nm
• High capacity Lithium-ion Battery, 48V, 15Ah (720Wh)
• Torque Sensor
• Integrated Driving Lights
• Shimano Drivetrain
• Tektro E-Brakes, Hydraulic, 203mm Rotors
• Full Length Fenders and Rear Rack included

Frame: Unique Compact Step-Thru Hydroformed Aluminum alloy frame, Integral Smooth Welding, Internal Cable Routing,Integrated bearings, 100mm BSA, Replaceable forged alloy derailleur hanger

Fork: Zoom, 80mm travel Suspension Fork, Locking Lever, Spring Preload Adjustment

Stem: Forged Alloy, 1-1/8” Threadless

Handlebar: Alloy, Riser, Ø31,8mm, Width: 680mm

Grips: Comfort Ergo, Bolt-On

Seatpost: Alloy, Ø30.4mm Quick Release clamp

Saddle: Comfort Wide, Tear-Resistant, Integrated Springs and Lifting Handle

Shifters: Shimano Acera ST-M315, Rapidfire, 8 Speeds

Derailleur: Shimano Altus RD-M310, with Protecting Cage

Chainring: Direct Mount, Splined alloy spider, 52T

Cassette: Shimano HG, Megarange 11-34T

Chain: PYC, 1/2” x 3/32”

Pedals: Sure Grip Platform, Alloy, 9/16’’

Brakes: Tektro HD-E3520, Hydraulic Disc Brakes,with Power cut-off sensor

Rotors: Stainless Steel TR-52 Anti Vibration 203mm 6-Bolt rotors

Rims: 20’’, 36H, Wide Profile, Alloy, Schrader

Hubs: Front: Alloy, 135mm, Bolt-On, 6-Bolts Disc Mount, Rear: (See Motor)

Spokes: 13G Stainless Steel, Black

Tires: 20 x 4.0’’, Retro Tan Wall, Reflective Side Strips, E-Bike Rated Casing

Driving Lights: Front: Big Headlight, White, 100 LUX, Connected to battery, Rear: Semi-Integrated Red LED driving light, Connected to battery

Accessories: Alloy Cargo Rack, SureFix System Full-wrapping Fenders, Direct Mount Alloy E-Bike rated Kickstand

Listed Weight: 74 lbs (33,5 kg)

Max Payload: 400 lbs (180 kg)

Motor: Bafang G0270 48V Custom Brushless Rear Hub, 500W, 36H*13G

Battery: Bafang BT F400, Semi-Integrated, 720Wh Capatity Lithium-ion, High Performance LG cells

Display: Bafang DP C271.CAN New Generation Smart Color Backlit LCD, G5.4, IP65 Connector

Sensor: Bafang SR PA242 Torque Sensor, JIS Bottom Bracket, BSA External Cups

Throttle: On Demand Thumb Press Button, Integrated Electronic Horn Button

Controls: Power / PAS level control pad

Charger: AIMA 48V Fast Charge
